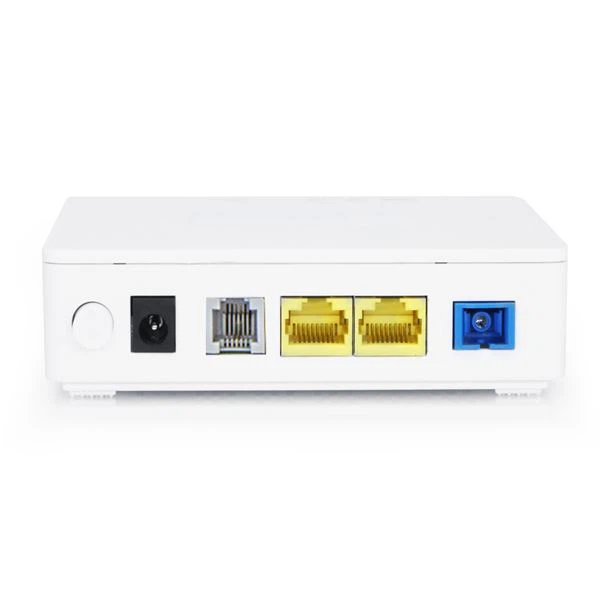

XPON 1GE plus 1FE plus 1POTS ONU

XPON 1GE plus 1FE plus 1POTS ONU
Batafsil:
XPON 1GE plus 1FE plus 1POTS ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a XPON Gigabit Ethernet products. The box is based on the mature Gigabit XPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.Good third-party compatibility when used with third-party OLTs such as Huawei/ZTE/ Fiberhome/BDCOM OLT.
So'rov yuborish
Ta'rif
So'rov yuborish

Xususiyatlari

●Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade.

●Integrated OAM remote configuration and maintenance function.

●Support rich QinQ VLAN functions and IGMP Snooping multicast features.

●Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

●Support NAT, Firewall function.

●Support IPv4 and IPv6 dual stack.

●Integrated line testing compliant with GR-909 on POTS.


Spetsifikatsiya

Texnik element

1GE plus 1FE plus 1POTS XPON ONU

PON interfeysi

1 E/GPON port
To'lqin uzunligi: Tx1310nm, Rx 1490nm
SC/UPC ulagichi
Receiving sensitivity:  Less than or equal to -28dBm
Optik quvvatni uzatish: 0 plus 4dBm
Etkazish masofasi: 20KM

LAN interfeysi

1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

POTS interfeysi

1 FXS, RJ11 connector
Qo'llab-quvvatlash: G.711/G.723/G.726/G.729 kodek
Qo'llab-quvvatlash: T.30/T.38/G.711 Faks rejimi, DTMF o'rni
GR-909 bo'yicha chiziqli sinov

LED

For Status of Power, PON, LOS,Phone,INTERNET,LAN

1, LAN2

Ishlash holati

Harorat: 0 daraja - ortiqcha 50 daraja
Humidity: 10 percent -90 percent （non-condensing）

Saqlash holati

Temperature : -30 degree - plus 60 degree
Humidity :10 percent -90 percent （non-condensing）

Quvvatlantirish manbai

DC 12V, 1A/1,5A

Power Consumption

7 Vt dan kam yoki unga teng

Hajmi

110mm90mm25mm（LWH）


Tarmoq qurilishi

XPON 1GE+1FE+1POTS ONU (5)


Buyurtma haqida ma'lumot

Mahsulot nomi

Mahsulot modeli

Tavsiflar

 XPON HGU

1GE plus 1FE plyus POTS

1GE,1FE Ethernet interface,1RJ11,1 XPON interface, plastic casing, external power supply adapter
