Xususiyatlari
● Hot-pluggable QSFP28 forma faktor
● 103,1 Gb/s umumiy bit tezligini qo'llab-quvvatlaydi
● 4x25G elektr interfeysi
● IEEE 802.3bm 100GBASE-SR4 standartiga mos keladi
● MTP/MPO optik ulagichi
● 100 m gacha OM4 MMF uzatish
● Raqamli diagnostika SFF-8636 bilan mos keladi
● RoHS-6 ga mos va qo'rg'oshinsiz
● QSFP28 MSA bilan mos keladi
● Yagona +3,3V quvvat manbai
● Maksimal quvvat sarfi 2,0 Vt
● Korpusning ish harorati
● Tijorat: 0 ~ +70oC
Ilovalar
Ma'lumotlar markazi
Elyaf kanali
Ethernet kalitlari va router ilovalari
Buyurtma haqida ma'lumot
| Qism raqami | DataRate(Gb/s) | To'lqin uzunligi (nm) | uzatish masofasi (m) | Harorat (oC) (Ishlash holati) |

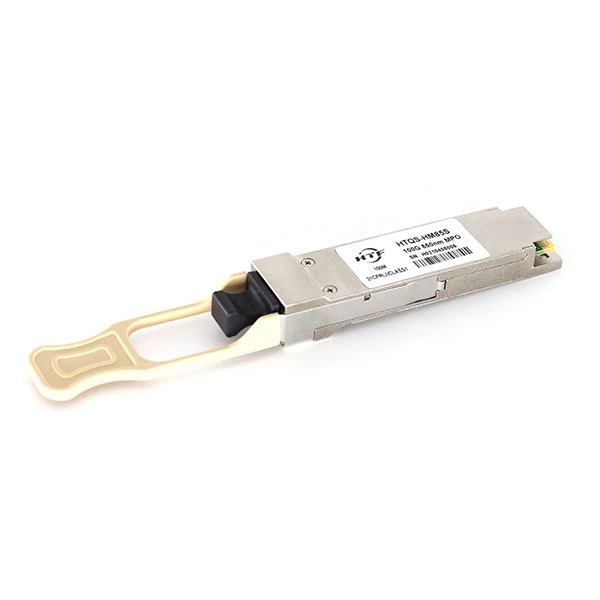

| HTQS-HM85S | 100 | 850 | 100 mmMMF | 0 ~ 70 tijorat |
Optik xususiyatlar
| Parametr | Belgi | Min. | Oddiy | Maks | Birlik | Eslatmalar |
| uzatuvchi | ||||||
| Markaziy to'lqin uzunligi | λC | 840 | 850 | 860 | nm | |
| Optik spektr kengligi | ∆λ | 0.6 | nm | |||
| AverageLaunchPowereachlane | PAVG | -8.4 | 2.4 | dBm | ||
| Optical Extinction Ratio | ER | 2 | dB | |||
| transmitter and Dispersion Penalty | tdP | 4.3 | dB | |||
| transmitterOFFOutputPower | Poff | -30 | dBm | |||
| transmitterEyeMask | IEEE802.3ae bilan mos keladi | |||||
| Qabul qiluvchi | ||||||
| Markaziy to'lqin uzunligi | λC | 840 | 860 | nm | ||
| RxSensitivityperlane | Sen. | -10.3 | dBm | 1 | ||
| Input SaturationPower (ortiqcha yuk) | Psat | 2.4 | dBm | |||
| LOSAssert | LOSA | -26 | dBm | |||
| LOSDe-tasdiqlash | LOSD | -12 | dBm | |||
| LOSHysterezis | LOSH | 0.5 | dB | |||
Mos keladigan brendlar
HTF optik qabul qiluvchi qurilmalari quyidagi kommutator roʻyxati bilan optik qabul qiluvchilar muvaffaqiyatli sinovdan oʻtkazildi:
| Cisco | Alcatel Lucent | Netgear |
| Mellanoks | Ittifoqchi telesis | SMC |
| Huawei | SolareFlare | Quyuv zavodi |
| Archa | Winyao | Force 10 (Dell) |
| Dell va EMC | ZTE | Linksys |
| Arista | D-Link | McAfee |
| Broadcom | TP-Link | Ekstremal |
| Qlogic (Cavium) | Ruijie | Markoni |
| Cheisio | Maypu | Pichoq |
| Intel | Feyxun | Hirschmann |
